Features

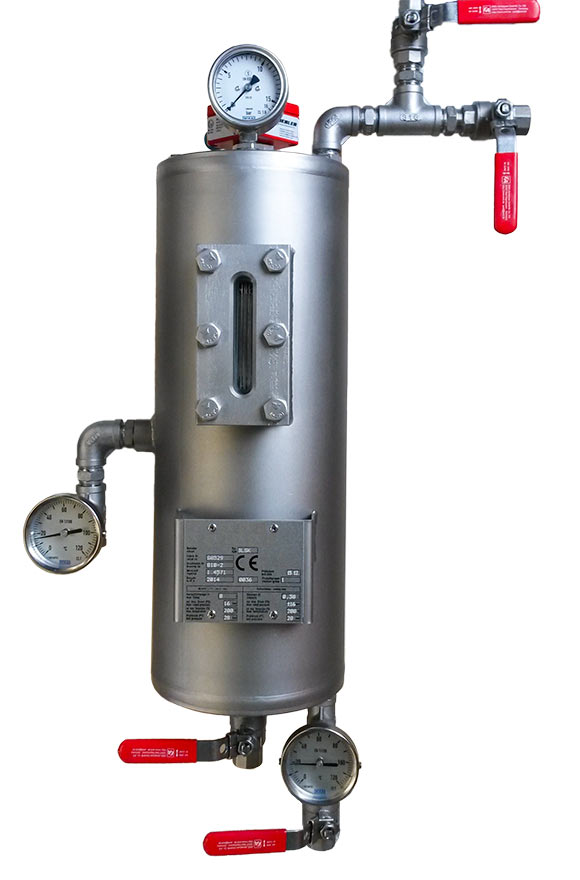

With the TSS-1000 thermosiphon system, both double and tandem mechanical seals can be supplied in a wide range of applications. The sealing pressure containers are available in differnet sizes with dished bases, sight glasses for fill level monitoring and with or without cooling coil. All process connections and brackets are provided on the container as standard. All process connections can be implemented as flanges or sockets with/without sealing surfaces.

based on: API 682/ISO 21049: Plan 52/53A

Basic tasks

• pressurize the Buffer chamber
• leakage compensation
• barrier fluid is circulated
• cooling the seal
• selectively absorb product leakage
• Prevent dry running

Recommend applications

	Chemical industry
	Water & waste water
	Food & beverage industry
	Pulp & paper industry

Standards & approvals

• PED 2014/68/EU
• ASME VIII DIV. 1
• SELO
• TR-CU 032/2013
• KOSHA
• SANS 347:2012
